Scrub Abrasion Tester

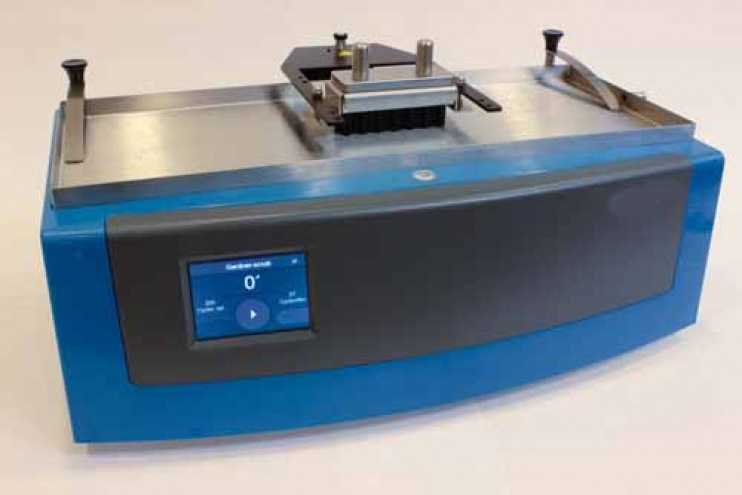

T107 Scrubbing Tester, It is suitable for various abrasion and wet scrubbing tests, which is commonly used in scrubbing resistance tests for interior wall paints, floor tiles, shower rooms, and furniture surfaces. Brush, sponge, scouring pad, sandpaper or other methods can be required to test the scrubbing resistance ability of the painted or uncoated surface. The abrasion resistance test can be carried out by adding abrasive or detergent using wet scrubbing method.

1.Under the driving of the motor, the friction head is driven to reciprocate. At the same time, according to different standard test requirements, movement rate and movement stroke of the tester can be well adjusted; Different standards require different friction heads, including polyurethane sponges, pig hair brushes and so on. By replacing the friction head, different forces can be applied.

2.The tester is equipped with two compression pinch cocks for holding the sample. Insert it into the hole at the back end to lift or lower it, when pressed down, it can press the sample that needs to be held, which is convenient and quick to install the samples, and it has good operability.

Standards compliant

JIS L0849-2013 Tests for color fastness to rubbing (type I);

JIS L0849-2013 Tests for color fastness to rubbing (type II);

JIS L1084-2009 Tests for flocking fabric (color fastness);

JIS L0862-1996 Tests for color fastness to rubbing : Organic solvent (type I);

JIS L0862-1996 Tests for color fastness to rubbing : Organic solvent (type II);

JIS P8136 Tests for abrasion resistance :cardboard ;

JIS L1084-2009 Tests for flocking fabric (flocking strength).

Major Features

Quick-change fixture design

The adjustable quick holder can be used to mount test samples of various thicknesses, easy and convenient.

Standard test accessories

The tester can be configured with a variety of standard test suites to meet different test needs while loading different loads.

Stainless steel body

The test board of the device is made of stainless steel, which can resist the corrosion of various liquids, and the appearance of stoving varnish is beautiful and durable.

Flexible and compact design

The flexible and compact design makes this tester easy to assemble, which can be installed and tested from the lab to the production line at anytime and anywhere.

Field Application

T107 Scrubbing Tester,It is suitable for brush, sponge, scouring pad, sandpaper or other methods that can be required to test the scrubbing resistance ability of the painted or uncoated surface.

It is applicable to the performance verification of new products, quality control of the production department, and the of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technical supervisiondepartment, etc.
