Szárítási sebesség tesztelő

I. Product Introduction

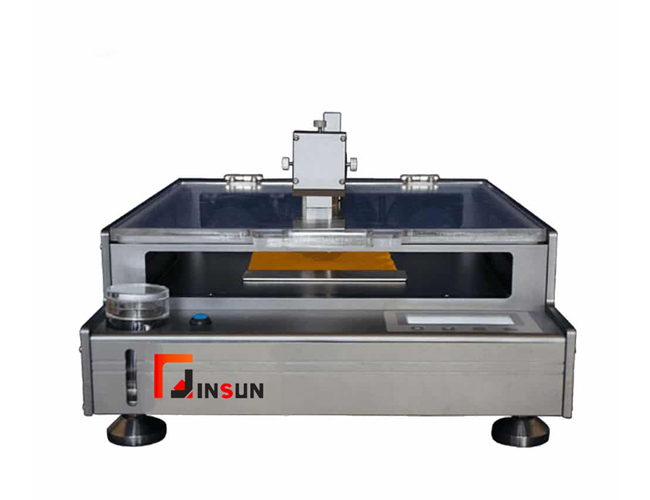

The Drying Rate Tester is designed according to AATCC201 standard requirements. Equipped with high-precision temperature and airflow sensors, automated dripping system completes fabric drying time and rate testing with integrated data analysis, significantly improving work efficiency and measurement accuracy while reducing human operation errors.

II. Testing Principle

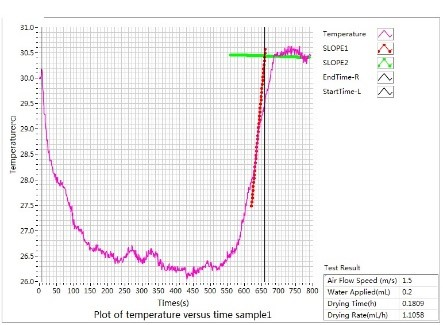

Simulates human perspiration drying process: Fabric samples are placed on a 37°C heated plate with 0.2mL water droplet at center. Maintains 1.5m/s ± 0.1m/s airflow for drying. Infrared temperature sensors monitor fabric temperature changes to determine drying completion.

III. Standard Compliance

AATCC201

IV. Technical Parameters

V. System Components

• Main testing host
• DRT computer analysis software
• Sample pressing plate

VI. Construction Features

Thickened aluminum alloy housing provides durable corrosion resistance. Integrated control panel and display enable standalone operation without computer connection.
