Tépőzáras fáradtságmérő

Termékinformációk:

Velcro Fatigue Tester is designed for opening and closing the hook and loop fasteners, A hook and loop fastener is repeatedly opened and closed for a specified number, and then is rolled by a roller to the hook side and the loop side to stick closely so as to determine the adhesive force and strength. This machine has a memory function. You can adjust the force applied to the specimen by adjusting the counterweight and load.

Szabványok:
DIN-3415、SATRA TM123、ISO 22776、GB/T 3903.20、GB/T 3903.21、GB/T 23315-2009

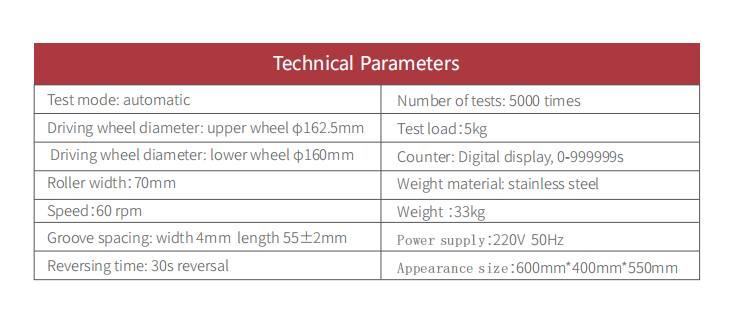

Műszaki paraméterek:
1. Wheel diameter: the previous round φ162.5mm, the next round φ160mm;
2. Wheel width: 70mm;
3. Rolling speed: 60rpm / min;
4. Fixture slot: width 4mm, length 55 ± 2mm;
5. Reverse time: 30s reverse;
6. Tests: 5000 times;
7. Load: 5kg;
8. Counter: Counter: LCD liquid crystal display, 0-999999;
9.HP: AC1 / 8HP dual-frequency motor;
10. Instrument material: stainless steel;
11. Surface treatment: painting;
12. Volume: 70 × 47 × 60cm;
13. Weight: 51kg;
14. Power: AC220V, 50HZ, 5A.

Standard configuration:
Velcro fatigue testing machine 1 Taiwan
5kg weight 1
Power cord 1

Jellemzők:
1. Determine, opening and closing strength;
2. Digital reading;
3. Construction, in compliance with the standards ;
4. Velco Strips Test weights are supplied with tester;
5. Can be used with every kind of Velcro strips;
6. Rotation – Meter provides  the pre-determined number of tests;


Termék kijelzője:
