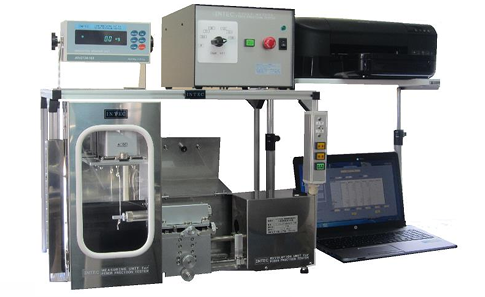

RIDER Method Single Fiber Friction Tester

Megfelel a szabványnak:

JIS L1015 （Chemical fiber binding test method）， JIS L 1095 （General yarn test method）/friction coefficient

Cél:

This instrument is designed to efficiently and accurately measure the friction coefficient specified in JIS L 1015 （prescribed test method for chemical fibers） and JIS L 1095 （General test method for yarns）。 Compared to traditional torsional balance testing machines, it is not only simple to operate and accurate data, but also can obtain accurate repeatable data outside of sample production, regardless of whether the operator is experienced. In addition, the specially developed data processing system can automatically calculate the friction coefficient.

Jellemzők:

1. The accuracy of friction resistance data is maintained at 0.1mg, and the data will not cause errors due to different surveyors.

2. Due to the use of a dedicated load measuring device with a maximum value of 100,000mg （commonly used 100mg）， it has excellent durability and reproducibility compared with previous coordination and balancing machines, and it is also very simple to use, and "automatic zero operation" can be achieved at the press of a button.

3. The up and down movement of the load measuring part can be achieved with a special motor.

Product Advantages:

Efficient and Accurate Measurement: Designed to provide both efficient and highly accurate measurements of static and dynamic friction coefficients.

Standard Compliant: Meets the requirements for measuring friction coefficient specified in JIS L 1015 and JIS L 1095 standards.

Superior Repeatability and Reproducibility: Provides accurate and repeatable data with reduced dependence on operator experience or sample preparation variations.

High Accuracy of Friction Resistance Data: Maintains high accuracy in measuring friction resistance, specified at 0.1mg.

Dedicated High-Capacity Load Sensor: Utilizes a special load measuring device with a high maximum value and excellent durability and reproducibility.

Simple Operation and Automatic Zero: Features a simple user interface and an automatic zero operation function for ease of use.

Automatic Friction Coefficient Calculation: Integrated data processing system automatically calculates the friction coefficient.

Versatile Measurement Types: Capable of measuring both fiber-to-solid and fiber-to-fiber friction.

Measures Static and Dynamic Friction: Provides data for both the force required to initiate movement and the force during relative motion.

Műszaki paraméterek:

Model: IT-FMT

Measurement items: Fiber v.s. pear roller, fiber v.s. fiber/static friction and dynamic friction

Measuring range: 0.1 to 100.0mg

Display mode: Digital mode （display panel and P/C display）

Load measurement mode: special load sensor mode

Sample load: 100mg （clamp load）

Friction body speed :0.8 r.p.m. （20 mm/min.） , 12 r . p . m ., （300 mm / min .）

36 r.p.m.（900mm/min.）， 120 r.p.m.（3000mm/min.），

180 r.p.m. （4500mm/min.）， 720 r.p.m. （18000mm/min.）

Friction body type: Pear processing roller （8φX24mm）， yarn installation roller （8φX18mm）

Friction body rotation device: with X-Y rolling micro function

Load measuring part movement: up and down movement （micro speed, medium speed switching type）/remote control

Data items: measured value （mg） and friction coefficient for each sample, measured value and friction coefficient/mean value, standard deviation,

CV%, Max., Min.

Size, weight: 650w X 500d X 660Hmm, approx. 50kg （excluding P/C for data processing）

Power supply: single-phase 100v, 50/60hz, 1φ （single-phase 220v specification can also be produced）

Accessories: Data processing P/C （Windows 7 Japanese）， printer, P/C rack
