Szabványos fényforrás mintavételi táblázat

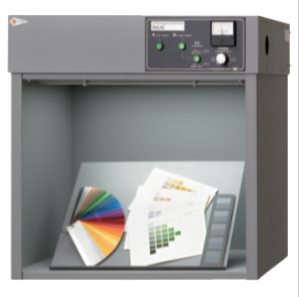

Product Introduction:The equipment is a standard light source machine for visual evaluation of the c
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
Tartalom
Standard
- ISO 3664:2009: Meets international standards for graphic arts and photography view conditions.
- DIN 6173-2: European norm for illuminant D50 and D65 spectral requirements.
- ANSI CGATS.6: North American color management protocols for print production.
Product Advantages
1. Consistent Color Verification
- Multi-Source Illumination: D65 (artificial daylight), D50 (warm daylight), TL84 (retail), CWF (cool white) modes eliminate metamerism risks.
- ISO-Certified Lighting: Simulates global retail/commercial lighting conditions.
2. 24/7 Color Accuracy
- Critical for Night Shifts: Maintains D65 consistency during off-hour production checks.
- 30-Minute Warm-Up: Ensures stable CRI ≥95 before critical evaluations.
3. User-Centric Design
- Intuitive Controls: Separate switches for each illuminant with auto-countdown timer.
- Spacious Work Surface: 1,200mm × 600mm (47” × 24”) for side-by-side sample comparison.
4. Low Maintenance
- 2,000-Hour Lamp Life: High-efficiency T8 tubes with replaceable European components.
- Tool-Free Lamp Replacement: Quick-release access panel for easy servicing.
5. Industrial Durability
- Steel Housing: Powder-coated finish resists scratches and chemical spills.
- Anti-Glare Diffuser: Eliminates specular reflections on glossy samples.
Product Features
- Lighting System:
- 5 Illuminants: D65 (6,500K), D50 (5,000K), TL84 (4,000K), CWF (4,150K), UV (365nm).
- Flicker-Free Output: Electronic ballasts ensure stable CRI ≥95.
- Control Panel:
- Illuminated switches with status LEDs.
- Digital hour counter tracks lamp usage.
- Safety Systems:
- Overcurrent protection (2A fuse).
- Residual current device (RCD) for operator safety.
- Ergonomics:
- Adjustable height stand (700–1,100mm) for standing/seated use.
- Removable center divider for large-format samples.
- Maintenance:
- Lamps accessible via magnetic front panel.
- Washable diffuser panel (IP54-rated).
Műszaki paraméterek
| Specifikáció | Részletek |
|---|
| Work Surface | 1,200mm × 600mm (47” × 24”) |
| Illuminants | D65/D50/TL84/CWF/UV (selectable) |
| Lamp Type | T8 fluorescent (18W/36W/58W) |
| Color Rendering Index | CRI ≥95 (D65/D50), CRI ≥85 (TL84/CWF) |
| Tápegység | 100–240V/50–60Hz (auto-switching) |
| Dimensions (W×D×H) | 1,250mm × 650mm × 1,100mm |
| Súly | 45 kg (net) |
Accessories & Options
- Lamp Kits:
- D50/D65/TL84/CWF replacement tubes (18W–58W).
- UV-A lamps for fluorescent agent detection.
- Calibration Services:
- Annual ISO 3664 certification with spectral report.
- On-site lamp replacement training.
- Safety Upgrades:
- Floor-standing base with locking casters.
- Anti-fatigue mat for extended use.
- Consumables:
- 10 × Replacement diffuser sheets.
- 1L Glass cleaner for diffuser maintenance.
- Warranty:
- 12-month manufacturer’s warranty (extendable to 36 months).
- Lifetime technical support via global hotline.
