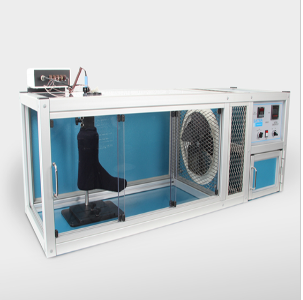

Teljes cipő légáteresztő és hőmegőrző tesztelő gép

Standard

• SATRA TM376: Thermal insulation testing of footwear with sock integration.
• SATRA TM386: Water vapor permeability assessment for athletic and outdoor footwear.
• SATRA TM436: Comprehensive sweat management evaluation for industrial safety shoes.

Product Advantages

1. Holistic Performance Analysis

• 3-in-1 Testing: Simultaneously evaluates thermal insulation, moisture absorption, and air permeability.
• Real-World Simulation: Replicates in-shoe microclimates with sweat generation and dynamic airflow.

2. Anatomical Precision

• Articulated Foot Model: Mimics human foot biomechanics with 22 articulating joints.
• Sock-Integrated Testing: Accounts for material interactions with standard/athletic socks (cotton, merino, synthetic).

3. Versatile Applications

• Multi-Category Use: Validates sports, hiking, work, and casual footwear.
• Material Development: Compares leather, mesh, membrane, and foam components.

4. User-Centric Design

• Touchscreen Workflow: Pre-loaded SATRA protocols with adjustable sweat rates (50–500 mL/hour).
• Self-Calibrating Sensors: Auto-zeroing for thermal/humidity channels.

5. Data Integrity

• 21 CFR Part 11 Compliance: Audit-ready electronic records with e-signatures.
• AI-Assisted Analytics: Machine learning identifies moisture migration patterns.

Product Features

• Advanced Sweat Simulation:
  • Peristaltic pump delivers precision sweat volumes (0.01mL resolution).
  • Heated foot model (32–45°C) with embedded thermal gradient mapping.
• Dynamic Airflow System:
  • Variable-speed fan replicates walking airflow (0–5 m/s).
  • 3D-printed air diffuser ensures laminar flow across shoe upper.
• Multi-Sensor Array:
  • 16 thermal couples measure surface/interface temperatures.
  • Capacitive humidity sensors track vapor transmission.
• Calibration & Safety:
  • NIST-traceable thermal calibration with on-screen QR code verification.
  • Over-temperature shutdown at 50°C.
• Software Suite:
  • ShoeComfort Pro™: Real-time thermal maps and moisture diffusion modeling.
  • CloudLab: Remote monitoring for global R&D teams.

Műszaki paraméterek

Accessories & Options

1. Standard Sock Kit:
   • 10 pairs of SATRA-compliant cotton/polyester blend socks.
   • Merino wool and GORE-TEX® socks for premium testing.
2. Software Add-Ons:
   • FEM Link: Export thermal models to ANSYS/Abaqus.
   • Batch Processor: Queue 24/7 unattended testing.
3. Safety Upgrades:
   • Explosion-proof enclosure for volatile solvent testing.
   • HEPA filtration for particle-sensitive labs.
4. Calibration Services:
   • Annual recalibration with NIST-traceable certificate.
5. Consumables:
   • 50 × Disposable sweat collection vials.
   • 1L Deionized water reservoir with purity indicator.
