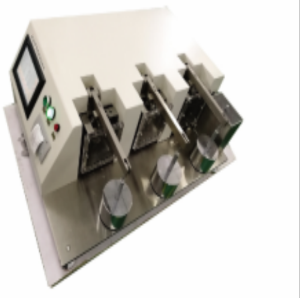

Moisture friction and wear testing machine

Termék bevezetése:

The hydraulic plastic friction and wear testing machine meets the standard "GB/T3960-2016 plastic sliding friction and wear experimental method", which is suitable for measuring the sliding friction and wear properties of plastics and plastics and other composite materials, and can also measure the friction force and friction coefficient of the sample. The instrument adopts color crystal touch screen control, data processing and micro printing.

Main parameters:

1, sample size :（30x7x6+0.5）mm

2, transmission speed :200 RPM +5%

3, load :20KG+1%

4. Friction ring :φ40x10mm HRC40——45 chamfer 0.5x45° The concentricity deviation between the outer surface and the inner circle is less than 0.01

5, friction torque :0——4N·m+2%

6, equipment weight :52kg; Weight after packing :82kg

7, equipment size :（length * width * height :500*460*320mm packaging size :650*600*550mm

Basic configuration:

1, a host

a Torque sensor

b A set of control system

c A micro printer

d lever

e-Pulley

2, a set of weights

3, a friction ring
