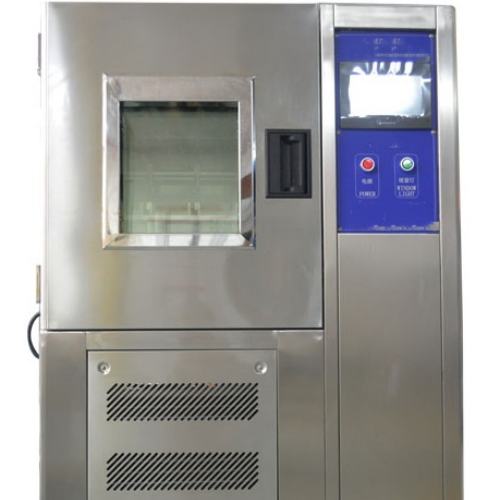

Vertical low temperature cold resistance testing machine

Termékleírás:

This machine is used to test finished shoes, rubber, plastic, soles, synthetic leather and other cold resistance degree to understand the material or finished products to adapt to low temperature climate or cold areas, this machine is made of stainless steel and can be installed with a variety of resistant fixtures to apply to different requirements.

Standards:

ASTM-D1790, D1593,1052, JIS-K6545, HB-T2877, CNS-7705, ISO 20344, GB/T20991-2007

Product Specifications:

1. Inner and outer box material: stainless steel #304

2. Controller: touch screen control

3. Temperature range: （1） normal temperature -30℃ （2） normal temperature -50℃（optional）

4. Optional inner box action: leather flex fixture （optional to install finished shoes with bending resistance, outsole zigzag resistance fixture）

5. Protection device: thermal protection stop, leakage protection stop overtemperature protection, overload protection and other functions

6. Control accuracy: ±0.3℃

7. Distribution uniformity: ±0.1℃

8. Cooling speed: from room temperature to -30℃

9 Refrigerant: R404 environmental refrigerant

10. Compressor: original fully hermetic

11. Compressor starting delay: 5min

12. Power consumption: （4-6）KW

13. Insulation material: rigid foam and glass wool

14. Counter: LCD,0——999,999

15. Window: （210×35×270）mm, two vacuum layer

16. Window light: P1 light,5W

17. Power supply: AC380V 50Hzor1 AC220V 50HZ

18. Motor: no belt multi-import gear reducer motor

19. Inner box size: （600×600×550） mm

20. Volume: （110×105×160） cm

21. Weight: 200kg
