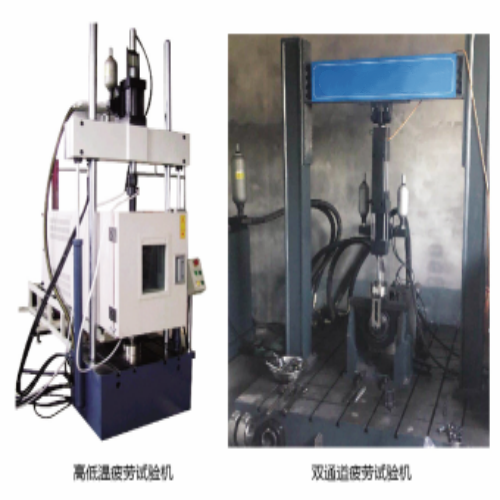

Electro-hydraulic servo dynamic fatigue testing machine

Termék bevezetése:

Electro-hydraulic servo dynamic and static fatigue testing machine （hereinafter referred to as the test machine） is mainly used for metal materials and non-metal materials, components, structural parts, standard parts, especially new materials such as ultra-strength steel, titanium alloy and reinforced synthetic fiber and other materials tensile, compression, fatigue, low cycle fatigue, crack growth, fracture mechanics test. The fatigue performance parameters, fatigue life, cyclic elastic modulus and fatigue crack growth rate were measured by symmetric cyclic and asymmetric fluctuating and alternating load cycle fatigue tests.

Performance parameters:

1. Test force:

Maximum static test force （kN） : ±20

Effective measuring range （%FS） : 0.4——100

Indicating accuracy （%） : ±0.5

Maximum dynamic test force （kN） : ±20

Effective measurement range （%FS） : 4——100

Indicating accuracy （%） : ±0.5

Force value resolution: 1/120000

Load sensing element: load measuring force sensor for high stiffness fatigue machine

2. Actuator stroke （mm） : 100

3. Maximum working pressure （MPa） : 21

4. Displacement:

Maximum displacement （mm） : 100

Indicating accuracy （%） : ±0.05

Resolution: 1/120,000

Sensing element: Conventional type: differential transformer type

5. Amplitude （mm） : ±10（frequency 16H）

6. Generator frequency: Hz0.001——100

7. Frequency response range: Hz0.01——60

8. Maximum working frequency for long hours: 6

9. Test waveform: sine, rectangle, oblique wave, triangle, random

10. Counter: 999.999.999 preset |

11. Control mode: test force, displacement, can be smoothly converted

12. Test space:

Net width （mm） : 600

Net height （mm） : 800

Special type: Changes according to user requirements
