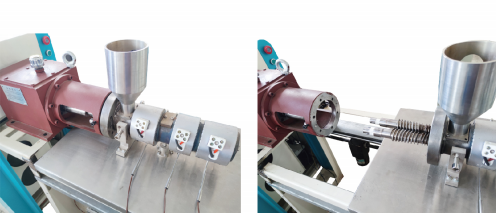

Conical twin screw extrusion platform

Termék bevezetése:

The conical twin-screw torque rheometer is composed of main control unit and conical twin-screw unit, which can simulate the production process of conical twin-screw extruder in laboratory. The unique structural design makes the cleaning of corrosive materials easier and faster after each experiment. The equipment is especially suitable for the processing of PVC powder, supplemented by different molds, can directly extrude plates, pipes and profiles for experiments.

Performance parameters:

1. Host

- Power supply: 3×380V, 50Hz +N +PE, 32A

- Host control mode: industrial bus control

- Drive motor power: 3.0kw

- Gear ratio: 10:1（15:1 optional）

- Power output speed: 5 —— 150 rpm

- Speed control accuracy: 0.3% F.S

- Temperature control: 9 channels are used for temperature measurement, including 4 channels for temperature control

2. Conical twin screw extrusion platform

- Structure: double segment separable

- Screw diameter: 20-39mm

- Effective screw length: 325mm

- Effective length of screw: 340mm

- Double tube: 20-40mm

- Maximum temperature: 350℃

- Static measurement accuracy: 0.1℃

- Temperature control accuracy: ±0.5℃

- Torque measurement range: 0 —— 250Nm

- Tension sensor: INTERFACE

- Torque measurement accuracy: 0.1%F.S

- Melt pressure measurement range: 0.1 —— 100 Mpa

- Melt pressure measurement accuracy: 0.5%F.S

- Temperature sensor: J-type thermocouple

- Heating power/zone: 550W

- Heating zone: Zone 4

- Cooling method: compressed air

- Feeding method: screw metering feeding

- Feeding motor brand: JSCC, reduction ratio 50:1, manual speed regulation
