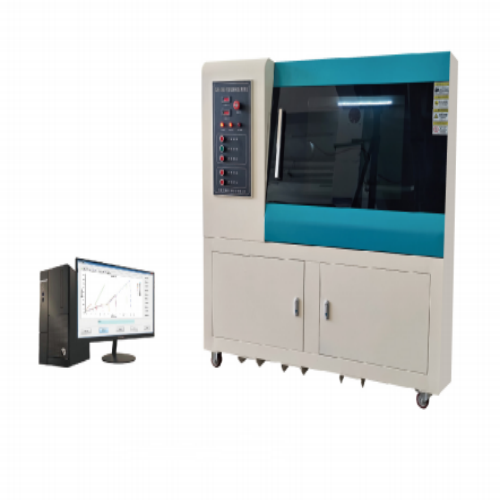

Computer controlled voltage breakdown tester

Termék bevezetése:

Computer controlled voltage breakdown tester is mainly suitable for solid insulating materials such as wire bushings, resins and adhesives, impregnated fiber products, mica and its products, plastics, film composite products, ceramics and glass and other media under power frequency voltage or DC voltage breakdown strength and voltage resistance time test, the instrument is controlled by computer. It can collect and process all kinds of data in the test process quickly and accurately, and can access, display and print.

Alkalmazandó szabványok:

GB/T1695-2005 "Vulcanized rubber power frequency breakdown voltage strength and voltage resistance determination method"

GB/T 3333 "Cable paper frequency breakdown voltage test method"

GB/T 12913-2008 "Capacitor Paper"

ASTM D149 "Test Method for Dielectric Breakdown Electrical, Voltage, and Dielectric Strength of Homogeneous Electrical Insulation Materials at Industrial Power Supply Frequencies"

Technical indicators:

1. Input voltage :AC220V 50Hz

2. Output voltage :AC:0——100kV; DC:0——100kV

3. Output power :10kVA

4. Measurement error :≤2%

5. Voltage boost rate 0.5kV/s——10kV/s

6. Voltage endurance time :0——4（stable voltage without breakdown

7. Leakage current :1——30mA can be set freely by computer software

8. Power supply: AC 220V+10% single-phase AC voltage and 50Hz+1% frequency

9. Test environment: Temperature :15——30℃， relative humidity :0——85% can run stably

10. Dimensions :1570x1240x1850mm

11. Equipment weight: about 150ka

12. Grounding requirements: need to be grounded separately, grounding is attached to the national standard requirements, and the metal rod buried deep underground should be at least 1.5 meters below
