Bio-absorbable Internal Fixation Plates and Screws Tester
- Evaluating mechanical properties: By simulating the stress conditions of human bones, measure key
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
Tartalom
Standard
- YY/T 0509-2009 (China): Specifies mechanical testing protocols for orthopedic plates/screws made of hydrolyzable polymers, including axial pull-out, torsion, and 4-point bending tests.
- ASTM F2502-17 (International): Defines methodologies for evaluating the structural integrity of bioabsorbable fixation devices under physiological loading.
- ISO 13779-4: Additional compliance for in vitro degradation testing of resorbable materials.
Product Advantages

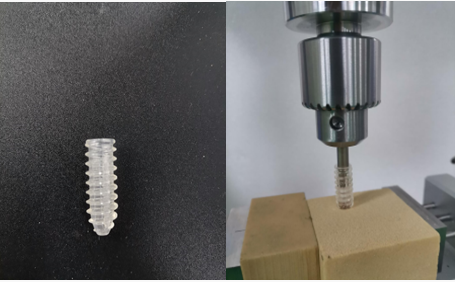

- Multi-Modal Testing: Single platform for axial pull-out, torsion, and 4-point bending tests.
- Biodegradation Simulation: 37±1°C pH-controlled water bath with real-time conductivity monitoring.
- High-Resolution Sensors: 0.001 N force/0.001 Nm torque resolution for fragile polymer testing.
- Modular Fixturing: Self-centering clamps accommodate plates (20–100 mm) and screws (2.0–4.5 mm).
- AI-Powered Analytics: Machine learning predicts degradation-induced strength loss over time.
- Regulatory Compliance: Pre-loaded YY/T 0509/ASTM F2502 protocols with automated reporting.
Product Features
- Electromagnetic Servo Actuator: 5 kN axial/1 Nm torsional capacity with programmable load ratios (R=0.1–10).
- 4-Point Bending Fixture: Anatomical curvature adapters replicate physiological stress patterns.
- Dynamic pH Control: 37±1°C water bath with pH 5.5–8.0 adjustment for degradation studies.
- High-Resolution Imaging: Built-in 5MP camera system for crack/corrosion analysis.
- Safety Suite: Emergency stop, chemical-resistant enclosure, and leak detection.
- Touchscreen Interface: Intuitive controls with pre-loaded ASTM/YY test sequences.
Műszaki paraméterek
| Paraméter | Specifikáció |
|---|
| Max. Axial Force | ±5,000 N (0.001 N resolution) |
| Max. Torsional Moment | ±1 Nm (0.001 Nm resolution) |
| Bending Span | 40–120 mm (1 mm increments) |
| pH Control Range | 5.5–8.0 (0.1 resolution) |
| Temperature Control | 37±1°C (PT1000 sensor) |
| Data Sampling Rate | 10 kHz (synchronized across 8 channels) |
| Power Requirements | 220V/110V ±10%, 50/60Hz, 1,200W |
| Dimensions (W×D×H) | 500 × 450 × 750 mm |
| Súly | 75 kg (net) / 90 kg (with bath) |
| Noise Level | <50 dB (A-weighted) |
Accessories
- Bioabsorbable Fixture Kit:
- Self-centering plate clamps (20–100 mm compatibility)
- Screw torque adapters (2.0–4.5 mm diameter)
- pH-Controlled Water Bath:
- 15L capacity with recirculating pump
- Corrosion-resistant titanium interior
- BioTest Pro Software:
- Automated degradation curve generation and strength retention analysis
- 21 CFR Part 11-compliant audit trail with blockchain timestamping
- Remote monitoring via iOS/Android app
- Operator Kit:
- Calibrated torque wrench set (0.1–1 Nm)
- Implant alignment jigs (ASTM F2502 compliant)
- Calibration Bundle:
- NIST-traceable force/torque calibration weights
- pH electrode calibration solution
- Safety Kit:
- Chemical-resistant gloves
- Acoustic enclosure with 25 dB noise reduction
