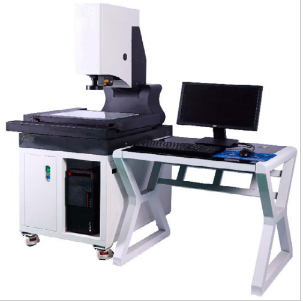

Fully Automatic Vision Measuring Machine

Main parameters:

Measurement accuracy :≤（3+L/200）um

Operation mode: automatic control handle operation

Three-axis control system: German Bruker servo drive system or equivalent products

Magnification: Optical magnification 0.7X-4.5X, image magnification 20-180X（customizable）

Imaging system: Hikvision Gigabit high-speed fiber optic digital camera （no video card required for clearer）

Lens: Primis 6.5:1 variable magnification lens

Measuring stroke :300*200*180mm, 400*300*180mm, 500*400*180mm, 600*500*180mm, can be customized

Product advantages:

1, full mouse, handle type automatic control, simple to use, high efficiency, good stability

2, can generate tasks for automatic batch measurement, and support automatic and manual interactive operation.

3, lens calibration: automatic lens calibration, eliminating tedious complete calibration steps.

4. Automatic light source control, support automatic lighting.

5. Support surface light five ring eight regions, contour light of each section automatic control.

6, can quickly automatic focus, focus measurement height.

7, Import CAD drawings: can import DXF drawings, import and export each other with CAD, complete graphics processing
