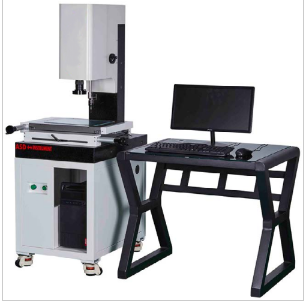

Manual Vision Measuring Machine

Termék bevezetése:

The manual imager can efficiently detect the outline and surface shape of a variety of complex workpieces, such as: templates, stamping parts, cams, threads, gears, forming milling cutter and other tools, tools and parts, as well as terminals, watches, diamonds, etc.

It is widely used in machinery, mold, instrument, electronics, light industry and other industries, and is an indispensable measurement and verification equipment for measuring rooms and production workshops.

Main parameters:

Measurement accuracy :≤（3+L/200）um

Operation mode :X, Y, Z three axis manual operation

Grating resolution :1um

Magnification: Optical magnification 0.7X-4.5X, image magnification 20-180X（customizable）

Imaging System: Hikvision Dry Megabit high-speed fiber optic digital camera （no video image card required）

Measuring stroke :300*200*180mm, 400*300*180mm, 500*400*180mm, 600*500*180mm, can be customized
