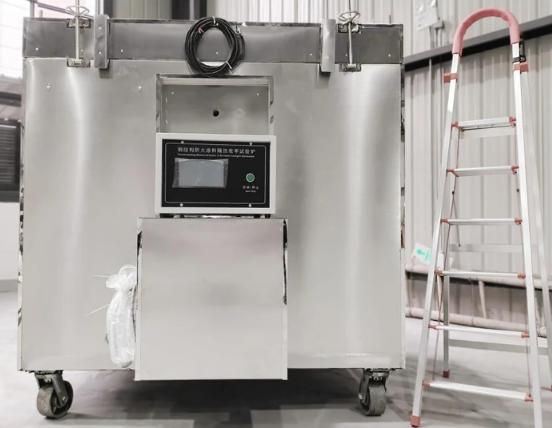

Heat insulation efficiency and fire resistance limit test furnace of fireproof coatings for steel structure

Termék bevezetése:

Heat insulation efficiency and fire resistance test furnace of steel structure fire retardant coatings is a special instrument for fire resistance test of steel structure fire retardant coatings according to the technical indicators specified in GB14907-2018 "Steel, GB/T9978-2008, Article 4, Article 5, 5.1 and 5.2".

The heat insulation efficiency and fire resistance limit test furnace of steel structure fire retardant coating is directly controlled by touch screen operation, eliminating the cumbersome installation software of connecting the computer, and the overall process of the test is highly automatic, easy to operate and maintain, and the temperature error is less than the national standard.

Műszaki paraméterek:

1. Working voltage: AC 220V+10%

50Hz; Power consumption :3KW

2. Furnace pressure measurement range :0-100Pa

Furnace pressure control :20±3Pa

3. Air flow :0-50m3/min

Measurement accuracy :≤± 0.5m3 /min

4. Fuel: No. 0 or -10 diesel

5. Test temperature: program temperature rise
