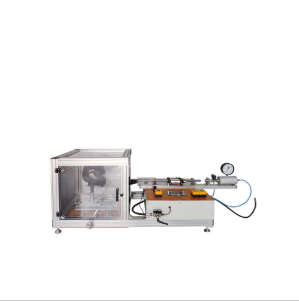

Helmet Goggles High Speed Particle Impact Testing Machine

Main Purpose

To test the impact - resistance performance of glasses, goggles and face shields at a certain speed.

Alkalmazandó szabványok

SNELL SA/K2010. EN 166. EN 168. ANSI Z87.1. MIL - PRF - 32432

Műszaki paraméterek

1. quality 1g ± 0.1g; diameter 5.5mm ± 0.1mm

2. impact speed: 140~170m/s (adjustable);

3. the control panel has an emergency stop device, higher safety; digital LCD display, display the speed of the projectile (m/s);

4. the test bench has an adjustable device. Convenient for quick and easy installation of helmets;

5. high-speed speed measurement system, the use of advanced high-precision laser speed monitor;

6. the normal operation of the machine needs to be connected with an air compressor. Provide high-pressure gas original with high-precision valve, so that instantly reach the test speed;

7. equipped with a safety police display light, when the door and valve of the equipment is not closed when the equipment can not enter the test state;

8. the instrument operated by the air, the test space for the fully enclosed, the door is installed on the observation port.
