Sanitary Pad Absorption Tester

Fő felhasználások:

The absorption speed tester is used to measure the absorption speed of sanitary napkins, menstrual napkins, diapers, etc., reflecting whether the absorption layer of sanitary napkins, menstrual napkins, diapers, etc., is absorbed in time.

Megfelel a szabványnak:

GB/T8939-2018, GB/T39391-2020, etc.

Műszaki paraméterek:

1. Standard test module: size is （76±0.1） mm* （80±0.1） mm, mass is 127.0±2.5g

2, arc sample base: length 230±0.1mm width 80±0.1mm

3, automatic liquid feeding device: the amount of liquid is 1 —— 50±0.1mL, the liquid discharge speed is less than or equal to 3s

4, the test module lifting speed: 50 —— 200mm/min adjustable

5, automatic timer: timing range 0 —— 99999 resolution 0.01s

6, power supply voltage: AC220V, 0.5KW

7, appearance size: length 420mm, width 480mm, height 520mm

8. Weight: 42Kg

A termék jellemzői:

1, color touch screen display, control, Chinese and English interface, menu mode of operation.

2, there is a test time display during the test process, convenient test time adjustment.

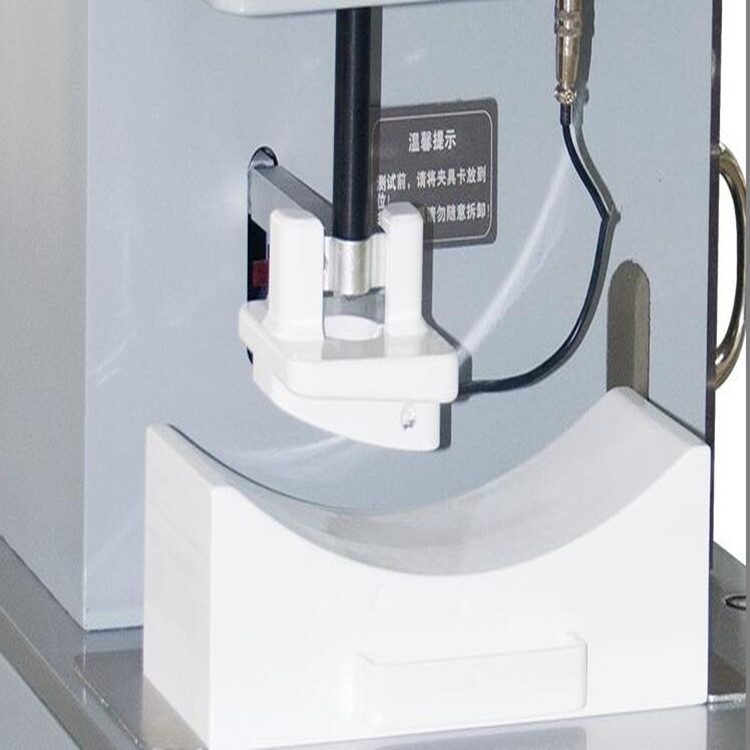

3. The surface of the standard test block is processed with silicone gel artificial skin.

4. The core control components are 32-bit multifunctional motherboards made by YIFAC.

5, the core transmission mechanism adopts imported precision guide rail.

6, the equipment automatic drip, flow adjustable.

7, equipped with precision level detection device.

8, quick replaceable sample base, easy to improve the test efficiency.

9, the test module automatic lifting without manual operation.
