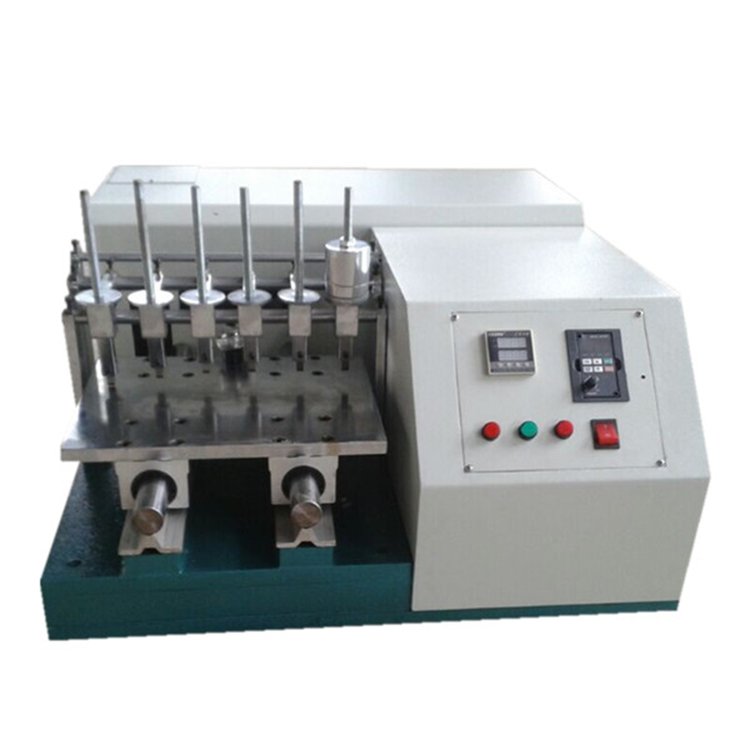

Rubber hose outer coating wear testing machine

Termék bevezetése:

Rubber hose outer coating Wear testing machine for hydraulic hoses and other similar types of hoses with fabric or steel wire reinforced outer coating with a smooth and flat surface.

Test method:

1. Install the assembled sample and mandrel on the test device, and ensure that the sample has no axial movement and （or） rotation.

2, place the abrasive tool to make contact with the sample, apply the vertical static pressure F specified in the product standard, and start the machine. If the force F is not specified in the product standard, the applied vertical static pressure should be 50N±0.5N.

3, the test is carried out until the specified number of cycles is completed, and then the sample assembly is removed from the test device, and the sample with or without a core shaft is weighed again as the initial weighing. It is important to remove any particles attached to the outer coating before weighing.

Test standard:

GB/T 12721-2007 - Determination of abrasion resistance of rubber hose outer coating

ISO 6945:1991 - Determination of the abrasion resistance of rubber hose cladding

KS M ISO 6945-2013 - Determination of the abrasion resistance of the outer coating of rubber hoses

EN ISO 6945-1996 - Determination of the abrasion resistance of rubber hose outer coatings

DS/ISO 6945-1984 Determination of wear resistance of rubber hose cladding

Main parameters:

1, reciprocating frequency: 1.25Hz（45 RPM）

2, cycle stroke: 200mm

3, loading static pressure: 50N±0.5N（other pressure weights can be customized processing）

4. Mandrel length: 150mm

5, shaft diameter: 5mm, 8mm, 10mm, 13mm, 16mm, 19mm, 22mm, 25mm, 32mm, 38mm, 45mm, 51mm, optional three, can also provide dimensional processing
