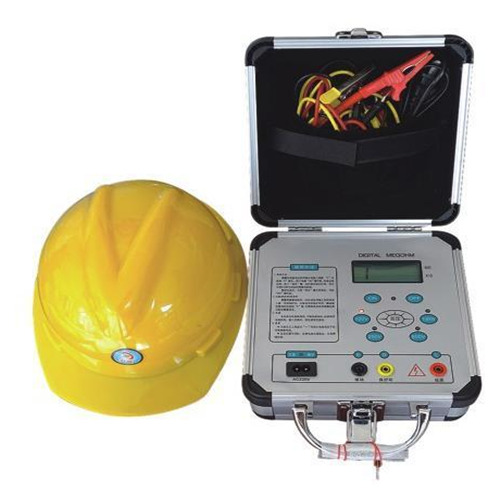

Safety Helmet Anti-static Tester

Termék bevezetése:

Safety hat anti-static performance tester according to the new national standard GB/T 2812-2006 "Safety hat test Method", GB/T 2811-2019 "Safety hat" development, used to test the anti-static requirements of safety hats, engineering plastics, helmets and other anti-static performance, high degree of automation, easy to operate, Widely used in safety helmet production enterprises and quality inspection units.

Megfelel a szabványnak:

GB/T 2812-2006

GB/T 2811-2019

Főbb jellemzők:

1, the range can be automatically converted, simple operation panel, large screen display, easy measurement

2, wide range of test resistance, reliable test accuracy

3, integrated portable design, lighter weight, easy to carry

Product Advantages:

Measures Critical Safety Property: Quantifies the antistatic performance (electrical resistance) of safety helmets and materials, crucial for preventing static charge buildup in hazardous environments.

Standard Compliant: Developed according to relevant national standards (GB/T 2812. GB/T 2811), ensuring regulatory compliance.

High Automation and Ease of Use: Automated features, simple panel, and large display make operation straightforward and efficient.

Portable Design: Integrated design and lighter weight facilitate easy transport and use in various locations.

Wide Test Range: Capable of measuring a broad range of electrical resistance values.

Reliable Accuracy: Provides accurate and trustworthy test results.

Multiple Voltage Options: Offers selectable test voltages to comply with different standard requirements or test conditions.

Suitable for Helmets and Materials: Applicable for testing both finished safety helmets and the engineering plastic materials used in their construction.

Product Features:

Mechanism for applying electrodes to the test surface or through the volume of the safety helmet or material sample.

Electrodes with specific dimensions (100mm length, 1mm width) made of metal foil, designed for parallel placement.

Low resistance conductive glue or paste used in conjunction with the electrodes to ensure good electrical contact.

Capability to apply selectable DC test voltages (100VDC, 250V, 500V, 1000V).

Wide test resistance range (1×104Ω to 2×1010Ω) to cover the typical range for antistatic materials.

LED digital display for showing the measured resistance value.

Automatic range conversion function for simplified measurement across different resistance levels.

Simple operation panel and large screen display.

Multiple trigger options for initiating the test (internal, manual, external).

High test accuracy with a specified indication error of $\pm$1%.

Integrated and portable design.

Main parameters:

Range: 1×10^4Ω —— 2×10^ 10ω

Indication error: ±1%

Test voltage: 100VDC, 250V, 500V, 1000V optional

Electrode length: 100mm±1mm, width: 1mm±0.1mm, the material is metal foil, the electrodes are placed parallel

Trigger: internal trigger, manual trigger, external trigger

Resistance value of conductive glue: <1kΩ
