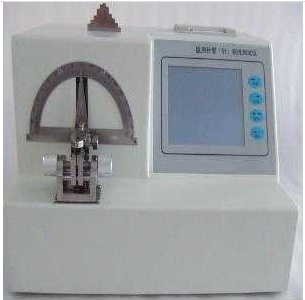

Medical needle toughness tester

Medical needle injection needle toughness tester using 5.7 inches (120 × 90) LCD menu display, touch operation: 3 tubes walls( normal wall, thin wall, ultra thin wall) are optional;

RX9626-D medical needle Toughness tester is designed and manufactured according to GB18457 " stainless steel needlefor medical equipment manufacturing," GB15811 "sterile disposable injection needle" standards

standards

GB15811

GB18457

ISO 9626

Test procedure

1 Fix one end of the needle tube firmly to the jig and adjust the specified span load of test needle  according to table 3 , and select bending angle as following, normal wall 25 °, thin wall 20 ° and ultra thin wall 15 °.

2. Apply a sufficiently large force at the specified span position, exert force bi-directionally 20 times at a frequency of 0.5 Hz to observe the breakage of the needle cannula.

Principle

One end of the needle tube is fixed and a force is applied to the needle tube from the fixed point to the prescribed span, bent in one direction by a specified angle and then into opposite direction, repeat at  stipulated number of times.

Technical parameters

Syringe nominal specifications: 0.2 ~ 3.4mm;

Test frequency: 0.5Hz;

Rocker arm bending angle: 15 °, 20 °, 25 ° 3 kinds of positions, the switch set bending angle, display in  high-brightness 4 digit LED;

Bending distance: 6 ~ 95mm, accuracy: ± 0.1mm (10 kinds of specifications);

The number of experiments: bi-directional force 20 times.

Net weight: 10kg

Overall dimensions: 300 × 240 × 240 (mm)

Free upgrade according to national standards perpetually

Part list:

1. Host  1 set

2. Printing paper 1 roll

3. Fixture  1set

4. Weight 1 set

5. Operating Instruction
