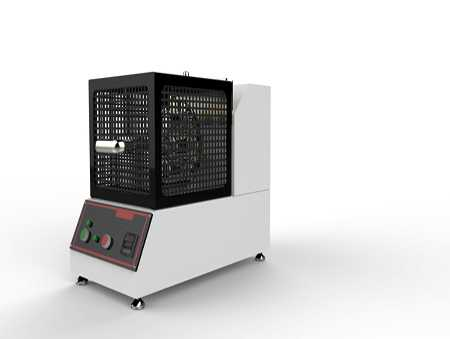

Leather Water Vapor Permeability Tester

Precision Leather Water Vapor Permeability Tester for Quality Control.

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Tartalom

Szabványok:

UNI EN IUP/15: Italian standard for testing the puncture resistance of safety footwear.

UNI EN 13515: European standard specifying abrasion resistance tests for protective footwear soles.

EN ISO 20344:6.6: International standard defining puncture resistance testing methods for safety shoes.

IUP 15: Standard for evaluating puncture-resistant properties of footwear materials.

BS 3144 Method 24: British standard for abrasion resistance testing of leather and footwear components.

SLP 25: Standard protocol for assessing safety shoe durability under repetitive stress.

DIN 53333: German standard for puncture resistance measurements in protective footwear.

ISO 17699: International standard for footwear safety, including puncture and impact resistance.

DIN 53 429: German method for abrasion resistance testing of rubber and plastics in footwear.

METODO - 309 WI 009: Brazilian standard for puncture resistance evaluation in safety footwear.

Alkalmazások:
Leather Water Vapor Permeability Tester is mainly applicable to leathers and textiles used in footwear uppers and clothing where it gives a measure of the ability to remove perspiration from the surface of the wearer's skin.The tester is used to determine the amount of water vapour a material will transmit through its structure in a specified time.

Product information:
The vapor permeability of leather is evaluated by means of measuring the weight of water-vapor that permeates to specimen per unit time and per unit area. The main functional components includes: testing holder clamp, ventilation fan, control panel with functions of switch, time setting and recording.
The machine has six separate test stations on a rotary table and each one has a sample holder. Silica gel desiccant is placed in the holder and the test material is placed over the neck of the holder and secured by a screw top. After weighing each holder, complete with silica gel and sample material, the holders are placed and locked into the rotary mechanism. After 7-8 hours the complete holder is weighed again and the gained weight is used to determine the degree of permeability. It is essential that the entire operation is carried out in a conditioned atmosphere of 20°C and 65% per cent relative humidity. In addition to the standard equipment, the tester is also supplied with a built-in timer to record the number of hours that testing has been carried out.

Műszaki paraméterek:

Test stations: 6;
Electronic timer for recording the testing times;
The fan blade: 3;
Dimension of fan blade: 75×90mm;
Angle between fan blades: 120°;
Gaps: 10±5mm;
Speed of fan: 1400r/min;
Rotary speed of specimen: 75r/min;
Diameter of sample holders: 30±1mm;
Diameter of fixtures: 30±1mm, helical;
Weight: 45kg;
Dimension: 350×570×450mm;
Power Consumption: 300W.
