Mullen & G229P Pneumatikus robbanási szilárdság tesztelő

Precision Mullen G229P Pneumatic Bursting Strength Tester.

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Tartalom

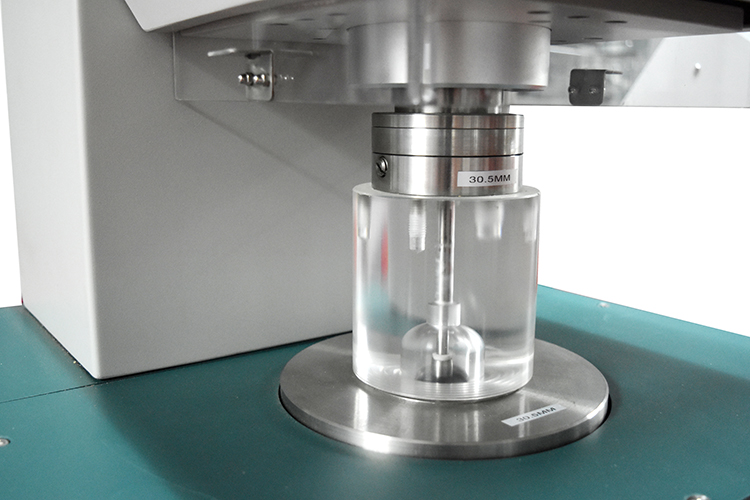

DSC_0229

Standard

  • ASTM D3786: Hydraulic bursting strength test method for textiles (Diaphragm method).
  • ISO 13938-2: Textile bursting characteristics – Air pressure method for bursting strength and expansion.
  • IWS TM 29: International Wool Bureau Standard for fabric bursting resistance.
  • EDANA 80.4.2002: Recommended test method for non-woven fabric bursting strength.
  • NEXT 22: Determination of fabric bursting properties.
  • GB/T 7742.1: Chinese National Standard for textile bursting strength (Equivalent to ISO 13938-2).

Product Advantages

  1. Precision & Speed: Utilizes pneumatic blasting technology to deliver rapid, accurate measurements of bursting strength, height, and force under uniform stress.
  2. Dual Control Modes: Combines manual and automatic operation via intelligent algorithms, ensuring flexibility for diverse testing needs.
  3. User-Centric Design: Features a color LCD touchscreen with intuitive software for real-time data display, analysis, and report generation.
  4. Multi-Industry Applicability: Ideal for textiles, leather, paper, non-wovens, and other materials requiring bursting resistance evaluation.
  5. Safety & Compliance: Built-in multi-directional safety protections and adherence to global standards reduce operational risks.
  6. High-Pressure Capacity: Maximum pneumatic pressure of 1.5MPa accommodates demanding testing requirements.

Product Features

  • Pneumatic Blasting Principle: Generates controlled air pressure to simulate real-world stress conditions, ensuring reliable and repeatable results.
  • Smart Touch Control: Color LCD interface with dual-button start and foot-switch compatibility for ergonomic operation.
  • Comprehensive Software: Integrates data acquisition, storage, analysis, and printing functions. Supports export of test reports in multiple formats.
  • Adjustable Pressure Range: Wide pressure adaptability (0–1.5MPa) suits various material thicknesses and strengths.
  • Safety Mechanisms: Emergency stop, overload protection, and automatic pressure release prevent equipment damage and operator injury.
  • Compact & Durable: Robust construction with minimal footprint (450mm × 350mm × 500mm) ensures long-term reliability.

Műszaki paraméterek

ParaméterSpecifikáció
Max. Bursting Force1.50 MPa
Test ModesManual / Automatic / Optional (Dual-Button + Foot Switch)
Accuracy±0.2% F.S.
Bursting Surface Diameter30 mm / 30.5 mm / 31 mm / 35.7 mm / 79.8 mm / 112.8 mm (Optional)
Bursting Membrane Size155.8 mm
Pressurization MethodPneumatic Air Pressure
Pressurization Rate1–100 kPa/min (Adjustable)
Sample FixingPneumatic Clamp
Output FormsPrintout / Display / Real-Time Graphic Display / Online Communication
Report FormatBursting Strength, Film Pressure, Bursting Height, Bursting Time, Statistical Analysis
Bursting Height Accuracy70 ±1%
TápegységAC 220V ±10%, 50Hz (Customizable 110V/60Hz)
Méretek800mm × 700mm × 1100mm
Net Weight115 kg
Software FeaturesReal-Time Data Acquisition, Statistical Analysis, Exportable Reports (PDF/Excel)
Safety ProtectionsEmergency Stop, Overload Protection, Auto Pressure Release
