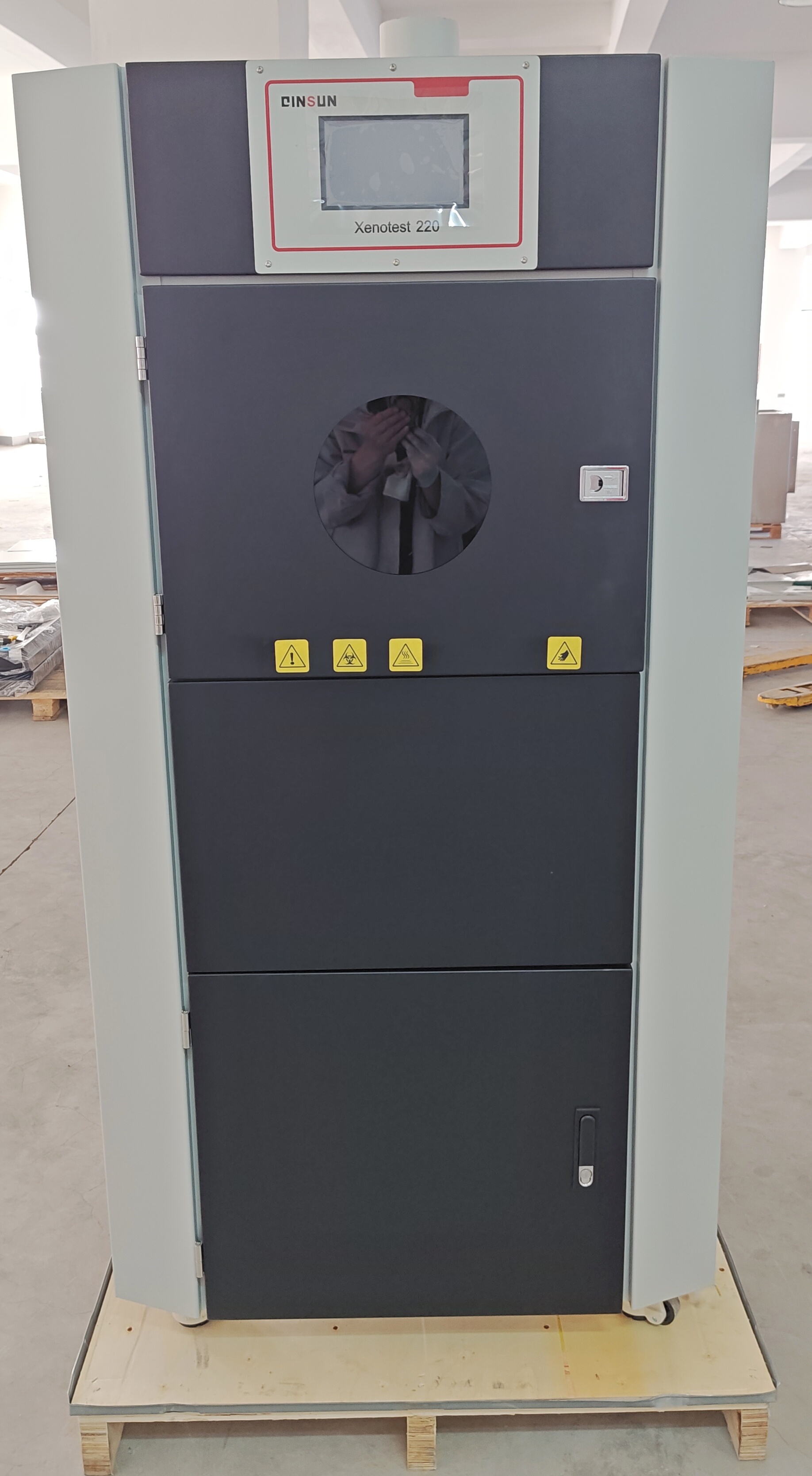

The air-cooled xenon lamp aging tester is a device that uses an air-cooled system to dissipate heat
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
ISO 4892-2 (Lightfastness and Weathering)
ASTM G155 (Xenon Arc Exposure of Plastics)
IEC 68-2-5 (Environmental Testing – Solar Radiation)
SAE J2527 (Automotive Exterior Materials)
Energy-Efficient Air Cooling System
Eliminates the need for water chillers, reducing energy consumption by up to 40% compared to traditional water-cooled models.
Low-noise operation (<60 dB) ensures a quiet testing environment.
Cost-Effective Maintenance
No water pipes, filters, or coolant replacements required. Simplified design minimizes downtime and maintenance costs.
Rapid Thermal Cycling
Achieve temperature shifts from -20°C to 80°C in <10 minutes, accelerating test cycles without compromising accuracy.
Advanced Spectral Control
Precision filters mimic natural sunlight (UV, visible, and IR spectra) for realistic aging simulation.
User-Centric Design
10.4” touchscreen with intuitive interface, multi-language support, and remote monitoring via Wi-Fi/Ethernet.
Dual-Mode Cooling Technology
Combines forced-air convection with a high-efficiency heat sink to stabilize lamp temperature during prolonged tests.
Intelligent Irradiance Control
Closed-loop feedback system maintains ±0.02 W/m² irradiance accuracy (300–400 nm range).
Programmable Climate Control
Independent settings for temperature (-20°C to 100°C), humidity (10%–95% RH), and rainfall simulation (0–50 cycles/hour).
Safety First
Overheat protection, emergency stop, and UV-shielding acrylic door ensure operator safety.
Modular Expandability
Add-on modules for ozone control, salt spray corrosion, and mechanical stress testing.
Standard Kit:
1 × Air-Cooled Xenon Lamp (6500K)
2 × Adjustable Sample Racks (Max. 10 kg load)
1 × Calibrated Radiometer
1 × USB Data Logger (16GB)
1 × UV-Resistant Acrylic Viewing Window
Optional Add-Ons:
Humidity Control Module (-20°C to 80°C, 10%–95% RH)
Remote Monitoring Software (IoT-enabled)
Multi-Language Interface Pack (10+ Languages)
Spare Lamp Kit (2x Xenon Lamps + Filters)
| Specifikáció | Részletek |
|---|---|
| Xenon Lamp Power | 1.8 kW (Air-Cooled, 6500h lifespan) |
| Test Chamber Size | 700 × 500 × 500 mm (W×D×H) |
| Hőmérséklet-tartomány | -20°C to 100°C (±2°C accuracy) |
| Humidity Range | 10%–95% RH (±3% accuracy) |
| Irradiance Range | 30–120 W/m² (300–400 nm, adjustable) |
| Test Cycles | 1–9999 hours (programmable intervals) |
| Tápegység | 220V/50Hz/60Hz, 20A (Single-phase) |
| Dimensions (W×D×H) | 1200 × 800 × 1800 mm |
| Súly | 350 kg (Net) |
