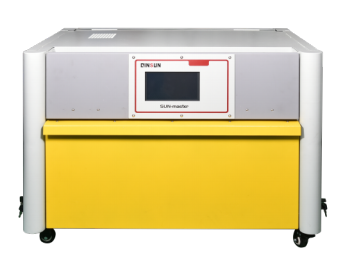

The SUN-master Desktop Xenon Lamp Aging Tester, with its desktop design, is suitable for all laboratories. It expands testing capabilities through optional accessories such as water spray, immersion, and freezing, providing a simple way to meet your needs. The chamber has an exposure area of 1100 square centimeters, suitable for multi-planar and 3D samples.
Szabványok
ISO 11979-5; ISO 4049; ISO 4892-1; ISO 4892-2; ISO 7491; ISO 11431; ISO 10977;
ICH Guideline Q5C; ASTM G155; ASTM G151; ASTM D6695; ASTM D5071; ASTM D3424
Műszaki paraméter
| Paraméter | Value |
|---|---|
| Control Mode | Automatic |
| Lamp Power | 1700W |
| Exposure Area | 1,100 cm² |
| Irradiance Monitoring | Quantitative closed-loop control (for 420nm/300-800nm and 340nm lamps) |
| Operation Interface | Chinese and English |
| Black Panel Temperature Setting Range | 45-100 °C |
| Black Panel Temperature Control Accuracy | ±2°C |
| Black Standard Temperature Setting Range | 45-95 °C |
| Black Standard Temperature Control Accuracy | ±2°C |
| Chamber & Black Panel Temperature Control Method | Through fans |
| Lamp Lifespan | Up to 1500 hours or more |
| Súly | 115kg |
| Tápegység | 220V 50Hz |
| Appearance Dimensions (L×W×H) | 100cm × 70cm × 70cm |
Product Features
1. Smart Control Panel with touchscreen
PLC control system, more efficient and reliable, with a programmable 7-inch color LCD touch screen, realizing multiple functions such as control, detection, calculation, and data display.
2. Powerful software functionality
The enhanced control system can handle complex custom programs and simple pre-programmed tests. The operation page features simple, clear icons for easy understanding; irradiance, temperature, and humidity can be programmed to change gradually, meeting various testing requirements of users.
3. Multi-directional protection
The instrument is equipped with temperature and humidity monitoring, airflow regulation, spray control, over-temperature, and leakage protection, ensuring the safety of the equipment and personnel.
4. Large testing area
This chamber is large enough to test up to 48 sample clips at once, which helps improving the consistency of exposure to sunlight for all samples
Application Field
1.Industrial Production
The SUN-master Desktop Xenon Lamp Aging Tester is widely used in packaging, cosmetics, pharmaceuticals and biopharmaceuticals, printing inks, industrial fabrics and surface coatings, agricultural chemicals, construction sealants, dental materials, and powder coatings.
2.Quality Inspection
The instrument is also suitable for performance verification of newly developed products, quality control in production departments, third-party testing institutions, product performance verification laboratories, quality and technical supervision departments, etc., for the determination of material properties.
Accessories
